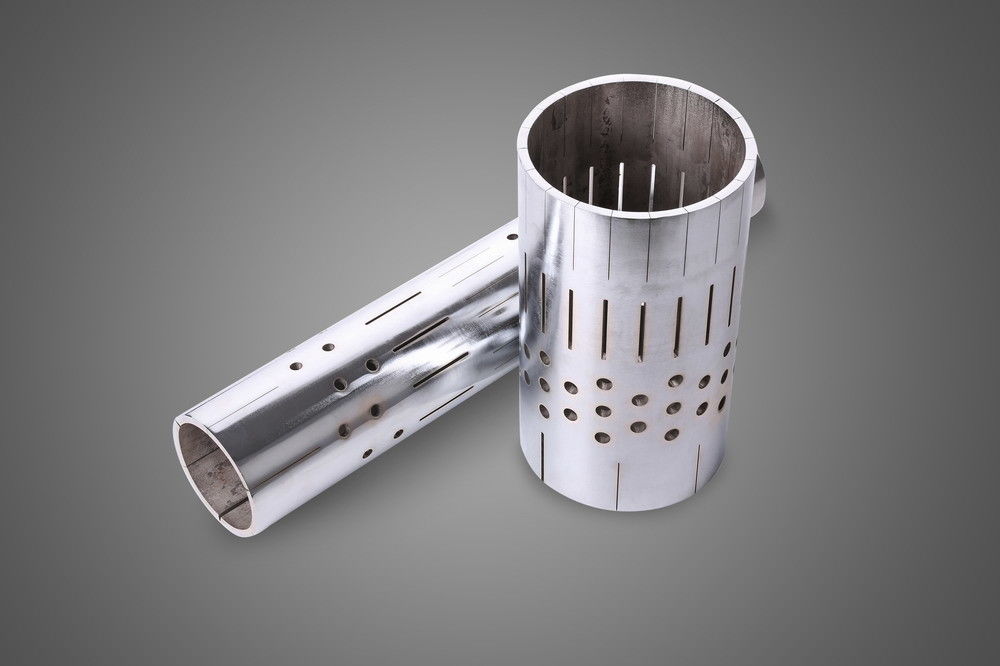

API SLOTTED LINER 2-3/8" ISO

API SLOTTED LINER 2-3/8" ISO

  • API SLOTTED LINER 2-3/8" ISO
API SLOTTED LINER 2-3/8" ISO
Product Details:
Place of Origin: CHINA
Brand Name: J55/K55/N80/L80/P110
Certification: API-5CT, ISO
Model Number: 2 3/8" -- 13 3/8"
Payment & Shipping Terms:
Minimum Order Quantity: 20ton
Price: USD
Payment Terms: L/C, T/T
Contact Now
Detailed Product Description
Product Name: Slotted Liner Grade: J55 K55 N80 L80 P110
Standard: API-5CT Size: 2 3/8" -- 13 3/8"
Highlight:

flexible slotted drainage pipe

,

slotted casing

Steel Oil Liner Even Pressure Distribution Custom Self Cleaning Longitude Slot



The slotted liner is mainly used to the water and oil reservation layer without much sand.Its function is to prevent the rock bits dropping into the well bore.
The working principle is allowing the certain size sand coming through the surface with crude oil but keeping the bigger size sand being stopper outside to form sand bridgeand thereby achieving the anti-sand purpose.
This type of product is commonly used to sand rock and carbonate reservoirand especially useable for horizontal wells.


Trapezidal design

Reduce the rate of erosion of sewing caused by system, improve self-cleaning, maintain the slot cavity open, and improve the recovery efficiency.

API SLOTTED LINER 2-3/8" ISO 0

Longitude slot design (rectangular slot)

Reduce friction of fluid entrance, open area of the fluid and processing are easily control. This design is mainly for thick reservoirs, similar pressure and other physical reservoirs and also loose sand reservoirs with medium coarse particles.

Composite slot design

Take the rate of crude oil seepage flow, flow resistance and lifetime into account, a combination of various slot. This slot is particularly design for complex reservoirs with different pressures. But the manufacture technology of composite slot is complicated and difficult.

API SLOTTED LINER 2-3/8" ISO 1

API SLOTTED LINER 2-3/8" ISO 2

API SLOTTED LINER 2-3/8" ISO 3
