| Place of Origin: | China |
| Brand Name: | J55/K55/N80/L80/P110 |
| Certification: | API-5CT, ISO9001 |
| Model Number: | 3-1/2" |
| Minimum Order Quantity: | 20ton |
|---|---|
| Price: | USD |
| Payment Terms: | T/T, L/C |
| Name: | API 5CT Tubing | Material Grade: | J55 K55 N80 L80 P110 |
|---|---|---|---|
| Standard: | API 5CT | Certification: | API-5CT, ISO9001 |
| Application: | Fluid Pipe, Boiler Pipe, Drill Pipe, Hydraulic Pipe, Gas Pipe, OIL PIPE, Chemical Fertilizer Pipe, Structure Pipe, Other | Length: | 12M, 6m, 6.4M, 1-12M |
| High Light: | octg pipe,oilfield tubular goods |
||

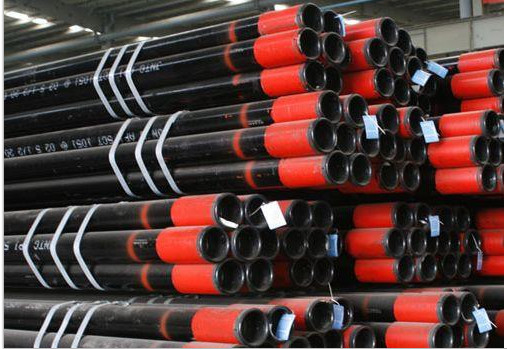

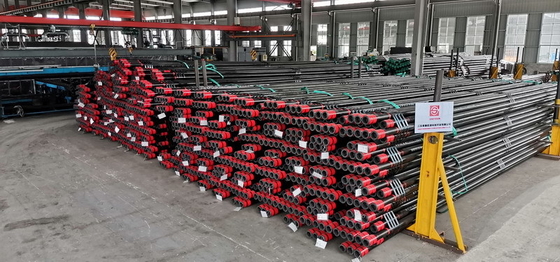

Non Alloy Oil Country Tubular API 5CT Tubing 3-1/2" N80
Pipe Length
1. Single Random Length and double Random Length.
2. SRL:3M-5.8M DRL:10-11.8M or As clients requested length
3. fixed length(5.8m, 6m, 12m)
Production Line
1. Professional oil exploitation equipment processing line,
2. Drilling pipe processing line,
3. Automatic heat treatment and Tempering line,
4. Pipe end hydraulic upsetting line, OCTG processing line etc.
Testing System
1. Eddy current testing (ET)
2. Magnetic flux leakage testing,Magentic particle inspection (MT)
3. Ultrasonic testing (UT),Hydraulic test etc.
Product Paramenters
| O.D. | Nominal mass | O.D. | w.t. | Nominal weight | Type of pipe end | |||||||||
| (lb/ft) | (kg/m) | |||||||||||||
| Threaded and coupled | Threaded and coupled | Grade | ||||||||||||
| NUE | EUE | In. | mm | In. | mm | NUE | EUE | J-55 | L-80 | N-80 | C-90 | T-95 | P-110 | |
| 3 1/2" | 7.70 | -- | 3.500 | 88.90 | 0.216 | 5.49 | 11.46 | -- | PN | PN | PN | PN | PN | PNU |
| 9.20 | 9.30 | 3.500 | 88.90 | 0.254 | 6.45 | 13.69 | 13.84 | PNU | PNU | PNU | PNU | PNU | -- | |
| 10.20 | -- | 3.500 | 88.90 | 0.289 | 7.34 | 15.18 | -- | PN | PN | PN | PN | PN | PNU | |
| 12.70 | 12.95 | 3.500 | 88.90 | 0.375 | 9.52 | 18.90 | 19.27 | -- | PNU | PNU | PNU | PNU | -- | |
| 14.30 | -- | 3.500 | 88.90 | 0.430 | 10.92 | 21.28 | -- | -- | P | -- | P | P | -- | |
| 15.50 | -- | 3.500 | 88.90 | 0.476 | 12.09 | 23.07 | -- | -- | P | -- | P | P | -- | |
| 17.00 | -- | 3.500 | 88.90 | 0.530 | 13.46 | 25.30 | -- | -- | P | -- | P | P | -- | |
| P-Plain; N-No threading and no coupling; U-Upset with threading and coupling | ||||||||||||||
|
Size Designation
|
Weight Designation lb/ft
|
Outside Diameter
|
Wall Thickness
|
||
|
In.
|
mm
|
In.
|
mm
|
||
|
4 1/2"
|
9.5~15.10
|
4.5
|
114.3
|
0.205~0.337
|
5.21~8.56
|
|
5"
|
11.50~24.10
|
5
|
127
|
0.220~0.500
|
5.59~12.70
|
|
5 1/2"
|
14.00~43.10
|
5.5
|
139.7
|
0.244~0.875
|
6.20~22.23
|
|
6 5/8"
|
20.00~32.00
|
6.625
|
168.28
|
0.288~0.475
|
7.32~12.23
|
|
7"
|
17.00~57.10
|
7
|
177.8
|
0.231~0.875
|
5.87~22.23
|
|
7 5/8"
|
24.00~55.30
|
7.625
|
193.68
|
0.300~0.687
|
7.62~19.05
|
|
7 3/4"
|
46.1
|
8.625
|
219.08
|
0.595
|
15.11
|
|
8 5/8"
|
24.00~49.00
|
8.625
|
219.08
|
0.264~0.557
|
6.71~14.15
|
|
9 5/8"
|
32.30~75.60
|
9.625
|
244.48
|
0.312~0.797
|
7.92~20.24
|
|
10 3/4"
|
32.75~85.30
|
10.75
|
273.05
|
0.279~0.797
|
7.09~20.24
|
|
11 3/4"
|
42.00~71.00
|
11.75
|
298.45
|
0.333~0.582
|
8.46~14.78
|
|
13 3/8"
|
48.00~72.00
|
13.375
|
339.73
|
0.330~0.514
|
8.38~13.06
|
