| Place of Origin: | China |
| Brand Name: | J55/K55/N80/L80/P110 |
| Certification: | API-5CT, ISO9001 |
| Model Number: | 2-7/8" |
| Minimum Order Quantity: | 20ton |
|---|---|
| Price: | USD |
| Payment Terms: | T/T, L/C |
| Name: | OCTG Tubing | Material Grade: | J55 K55 N80 L80 P110 |
|---|---|---|---|
| Standard: | API 5CT | Certification: | API-5CT, ISO9001 |
| Outer Diameter: | 2 3/8" 2 7/8 " 3 1/2" 4 1/2" | Ends: | PE, STC, LTC, BTC, EU,IEU, VAM,VAM Top, New VAM |
| High Light: | Oil Refinery OCTG Tubing,galvanized OCTG Tubing,smls steel OCTG pipe |
||

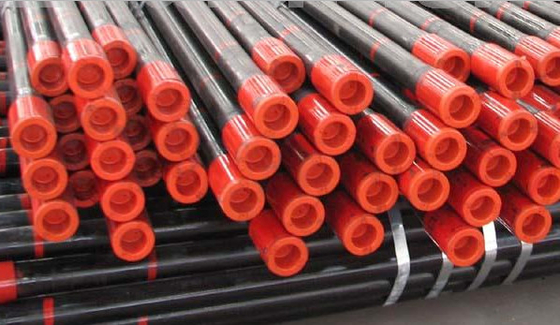

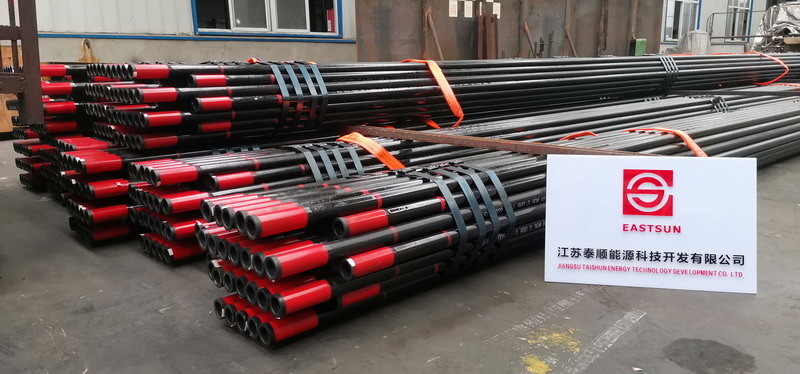

Oil Refinery Pipes API 5CT TUBING 2-7/8" L80 EU
Tubing is pipe used for the transportation of crude oil and natural gas from an oil or gas layer to the surface after drilling is complete. It is made to withstand the pressure generated from the extraction process.
Process: Seamless Steel Pipe (SMLS Steel Pipe)
Usage: Applicable to the general structure, mechanical structure, water wall panel, economizer, super heater, boiler and heat exchanger with seamless steel tubes, and to transport liquid, gas, oil etc.
| O.D. | Nominal mass | O.D. | w.t. | Nominal weight | Type of pipe end | |||||||||
| (lb/ft) | (kg/m) | |||||||||||||
| Threaded and coupled | Threaded and coupled | Grade | ||||||||||||
| NUE | EUE | In. | mm | In. | mm | NUE | EUE | J-55 | L-80 | N-80 | C-90 | T-95 | P-110 | |
| 2 7/8" | 6.40 | 6.50 | 2.375 | 73.02 | 0.217 | 5.51 | 9.52 | 9.67 | PUN | PNU | PNU | PNU | PNU | PNU |
| 7.80 | 7.90 | 2.375 | 73.02 | 0.276 | 7.01 | 11.61 | 11.76 | -- | PNU | PNU | PNU | PNU | PNU | |
| 8.60 | 8.70 | 2.375 | 73.02 | 0.308 | 7.82 | 12.80 | 12.95 | -- | PNU | PNU | PNU | PNU | -- | |
| 9.35 | 9.45 | 2.375 | 73.02 | 0.340 | 8.64 | 13.91 | 14.06 | -- | PU | -- | PU | PU | -- | |
| 10.50 | -- | 2.375 | 73.02 | 0.392 | 9.96 | 15.63 | -- | -- | P | -- | P | P | -- | |
| 11.50 | -- | 2.375 | 73.02 | 0.440 | 11.18 | 17.11 | -- | -- | P | -- | P | P | -- | |
| P-Plain; N-No threading and no coupling; U-Upset with threading and coupling | ||||||||||||||
