| Place of Origin: | China |
| Brand Name: | J55/K55/N80/L80/P110 |
| Certification: | API-5CT, ISO9001 |
| Model Number: | 3-1/2" |
| Minimum Order Quantity: | 20ton |
|---|---|
| Price: | USD |
| Payment Terms: | T/T, L/C |
| Name: | API OCTG Oil Country Tubular Goods | Material Grade: | J55 K55 N80 L80 P110 |
|---|---|---|---|
| Standard: | API 5CT | Certification: | API-5CT, ISO9001 |
| Oiled Or Non-oiled: | Slightly Oiled | Tolerance: | ±1% |
| High Light: | Threading OCTG oil Pipe,Non Alloy OCTG Pipe,Water Well API OCTG Oil Pipe |
||

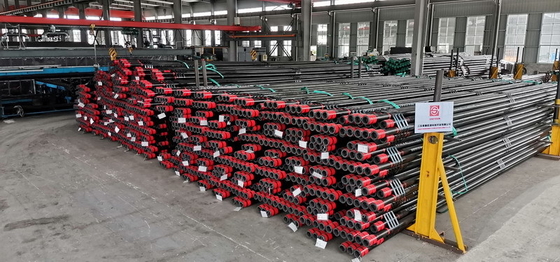

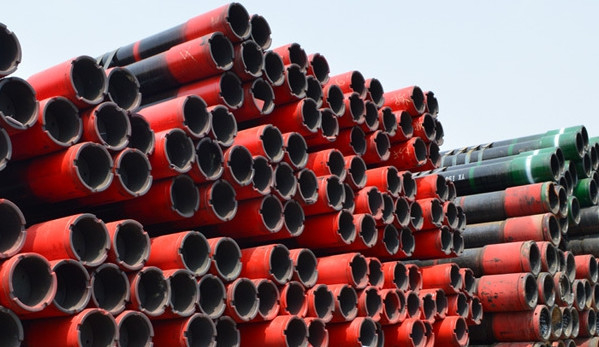

Water Well API OCTG Oil Country Tubular Goods Non Alloy N80 3-1/2" API 5CT Anti Corrosion
For Us
The main products of EASTSUN are API 5CT tubing casing pup joint coupling nipple crossover geological drill pipe and line pipe as well as their materials which with different kinds of steel grades and threads. Our annual sales reach to twenty million dollars.
Specification
|
OD
|
LB/FT
|
TK
|
ID
|
ND
|
C.OD
|
TREAD
|
LENGTH
|
|
139.7
(5-1/2)
|
20.85(0.244)
23.09(15.50) 25.32(17.00) 29.79(20.00) 34.26(23.00) |
6.20(0.244)
6.98(0.275) 7.72(0.304) 9.17(0.361) 10.54(0.415) |
127.3(5.012)
125.7(4.950) 124.3(4.892) 121.4(4.778) 118.6(4.670) |
124.1(4.887)
122.6(4.825) 121.1(4.767) 118.2(4.653) 115.4(4.545) |
153.7
(6.050) |
EUE
LTC
BTC
STC
PH6
|
8m-12m
(2602-39.4)
|
|
177.8
(7) |
25.52917.00
29.79(20.00) 34.26(23.00) 38.73(26.00) 43.20(29.00) 47.66(32.00) 52.13(35.00) 56.60(38.00) |
5.87(0.231)
6.91(0.272) 8.05(0.317) 9.19(0.362) 10.36(0.408) 11.51(0.453) 12.65(0.498) 13.72(0.540) |
166.1(6.538)
164.2(6.456) 161.7(6.366) 159.4(6.276) 157.1(6.180) 154.8(6.090) 152.5(6.004) 150.4(5.430) |
162.9(6.413)
160.8(6.331) 158.5(6.204) 156.2(6.151) 153.9(6.059) 151.6(5.969) 149.3(5.879) 147.2(5.795) |
194.5
(7.656) |
EUE
LTC
BTC
STC
PH6
|
8m-12m
(2602-39.4) |
|
219.1
(8-5/8) |
35.75(24.00)
41.71(28.00) 47.66(32.00) 53.62(36.00) 59.58(40.00) |
6.71(0.264)
7.72(0.304) 8.94(0.352) 10.16(0.400) 11.43(0.450) |
205.7(8.093)
203.7(8.020) 201.2(7.927) 198.8(7.827) 196.2(7.724) |
202.5(7.972)
200.5(7.894) 198.0(7.795) 195.6(7.701) 193.0(7.598) |
244.5
(9.625) |
EUE
LTC
BTC
STC
PH6
|
8m-12m
(2602-39.4) |
|
244.5
(9-5/8) |
48.11(32.30)
53.62(36.00) 59.58(40.00) 64.79(43.50) 70.01(47.00) 71.69(53.50) |
7.92(0.312)
8.94(0.352) 10.03(0.395) 11.05(0.435) 11.99(0.472) 13.84(0.545) |
228.7(9.001)
226.6(8.921) 224.4(8.835) 222.4(8.755) 220.5(8.681) 216.8(8.535) |
244.7(8.845)
222.6(8.765) 220.4(8.679) 218.4(8.599) 216.5(8.525) 212.8(8.379) |
269.6
(10.625) |
EUE
LTC
BTC
STC
PH6
|
8m-12m
(2602-39.4) |
|
273.0
(10-3/4) |
48.78(32.75)
60.32(40.50) 67.77(45.50) 75.96(51.00) 82.67(55.50) |
7.09(0.279)
8.89(0.350) 10.26(0.400) 11.43(0.450) 12.57(0.495) |
258.9 (10.192)
255.3 (10.050) 252.7(9.950) 250.2(9.850) 247.9(9.760) |
254.9(10.035)
251.3(9.894) 248.8(9.794) 246.2(9.694) 243.9(9.604) |
298.5
(11.752) |
EUE
LTC
BTC
STC
PH6
|
8m-12m
(2602-39.4) |
|
339.7
(13-3/8)
|
71.50(48.00)
81.18(54.50) 90.86(61.00) 101.69 (68.00) |
8.38(0.330)
9.65(0.380) 10.92(0.430) 12.19(0.480) |
322.9(12.715)
320.4(12.615) 317.9(12.515) 315.3(12.415) |
319.0(12.559)
316.5(12.459) 313.9(12.359) 311.4(12.259) |
365.1
(14.374) |
EUE
LTC
BTC
STC
PH6
|
8m-12m
(2602-39.4) |
|
73.0
(2-7/8) |
9.53(6.40)
11.62(7.90) 12.81(8.60) |
5.51(0217)
7.01(0.276) 7.82(0.308) |
62.00(2.441)
59.00(2.323) 57.40(2.259) |
59.61(2.347)
56.62(2.229) 54.99(2.165) |
88.9
(3.500) |
EUE
LTC
BTC
STC
PH6
|
8.5m-9.5m
(27.9-31) |
|
88.9
(3-1/2) |
11.47(7.70)
15.19(10.20) |
5.49(0.216)
7.34(0.289) |
77.9(3.067)
76.0(2.992) |
24.25(2.943)
21.04(2.797) |
107.95
(4.250) |
EUE
LTC
BTC
STC
PH6
|
8.5m-9.5m
(27.9-31) |
|
114.3
(4-1/2) |
18.77(12.60)
|
6.88(0.271)
|
100.5(3.957)
|
97.37(3.833)
|
132.08
(5.200) |
EUE
LTC
BTC
STC
PH6
|
8.5m-9.5m
(27.9-31) |
|
O.D. |
Nominal mass |
O.D. |
w.t. |
Nominal weight |
Type of pipe end |
|||||||||
|
(lb/ft) |
(kg/m) |
|||||||||||||
|
Threaded and coupled |
Threaded and coupled |
Grade |
||||||||||||
|
|
NUE |
EUE |
In. |
mm |
In. |
mm |
NUE |
EUE |
J-55 |
L-80 |
N-80 |
C-90 |
T-95 |
P-110 |
|
3 1/2" |
7.70 |
-- |
3.500 |
88.90 |
0.216 |
5.49 |
11.46 |
-- |
PN |
PN |
PN |
PN |
PN |
PNU |
|
9.20 |
9.30 |
3.500 |
88.90 |
0.254 |
6.45 |
13.69 |
13.84 |
PNU |
PNU |
PNU |
PNU |
PNU |
-- |
|
|
10.20 |
-- |
3.500 |
88.90 |
0.289 |
7.34 |
15.18 |
-- |
PN |
PN |
PN |
PN |
PN |
PNU |
|
|
12.70 |
12.95 |
3.500 |
88.90 |
0.375 |
9.52 |
18.90 |
19.27 |
-- |
PNU |
PNU |
PNU |
PNU |
-- |
|
|
14.30 |
-- |
3.500 |
88.90 |
0.430 |
10.92 |
21.28 |
-- |
-- |
P |
-- |
P |
P |
-- |
|
|
15.50 |
-- |
3.500 |
88.90 |
0.476 |
12.09 |
23.07 |
-- |
-- |
P |
-- |
P |
P |
-- |
|
|
17.00 |
-- |
3.500 |
88.90 |
0.530 |
13.46 |
25.30 |
-- |
-- |
P |
-- |
P |
P |
-- |
|
|
P-Plain; N-No threading and no coupling; U-Upset with threading and coupling |
||||||||||||||
Packing Information
1. Steels with a diameter or thickness of less than 30 mm and thin plates with a thickness of less than 4 mm shall be delivered in bundles. Each bundle shall be the same batch number. Each bundle shall be affixed with at least two signs. The nameplate shall indicate the name of the manufacturer, the steel number, the furnace number and the specifications.
2. Steels with a diameter or thickness equal to or greater than 30 mm can be delivered in bundles or not in bundles. Bundles of steel, each bundle of at least two signs, steel can not be stamped. Unbundled bundles of steel shall be stamped or marked on the top steel or plate of each bundle. Steel that is not bundled must be stamped on each steel or steel plate.
3. After the steel is packaged (or not supplied in bundles), it must be painted according to the relevant standards.
4. bundles of steel for delivery, each bundle should be bundled with wire at no less than two places.
5. The weight of each bundle shall not exceed 80kg when manually loaded and unloaded, and shall not exceed 5t when mechanically loaded and unloaded. After the consent of the purchaser, the manual loading and unloading may not exceed 130kg per bundle, and the mechanical loading and unloading may not exceed 10t per bundle.
