| Place of Origin: | China |
| Brand Name: | J55/K55/N80/L80/P110 |
| Certification: | API-5CT, ISO9001 |
| Model Number: | 4-1/2" |
| Minimum Order Quantity: | 20ton |
|---|---|
| Price: | USD |
| Payment Terms: | T/T, L/C |
| Name: | OCTG Tubing | Material Grade: | J55 K55 N80 L80 P110 |
|---|---|---|---|
| Standard: | API 5CT | Surface Treatment: | Hot Rolled |
| Application: | Oilfield | Section Shape: | Round |
| High Light: | Hot Rolled api steel pipe,Hollow Carbon api steel pipe,Oilfield seamless tubing |
||

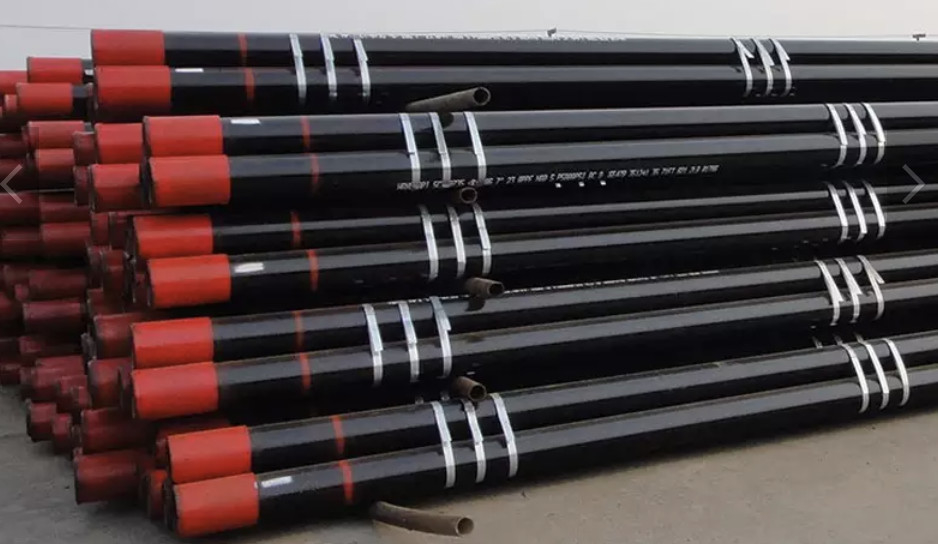

Hot Rolled Octg Tubing Hollow Carbon , Oilfield Tubular Goods API 5CT
What is OCTG tubing?
The term Oil Country Tubular Goods describes tubes that are used in oil and gas production: As a rule these include drill pipe, casing and tubing. Oil Country Tubular Goods are used both onshore and offshore. In the industry, they are also referred to by the acronym OCTG (for “Oil Country Tubular Goods”).
Description of OCTG Tubing
Tubing is pipe used for the transportation of crude oil and natural gas from an oil or gas layer to the surface after drilling is complete. It is made to withstand the pressure generated from the extraction process.
Specification Of OCTG Tubing
| O.D. | Nominal mass | O.D. | w.t. | Nominal weight | Type of pipe end | |||||||||
| (lb/ft) | (kg/m) | |||||||||||||
| Threaded and coupled | Threaded and coupled | Grade | ||||||||||||
| NUE | EUE | In. | mm | In. | mm | NUE | EUE | J-55 | L-80 | N-80 | C-90 | T-95 | P-110 | |
| 4 1/2" | 12.60 | 12.75 | 4.500 | 114.30 | 0.271 | 6.88 | 18.75 | 18.97 | PUN | PNU | PNU | PNU | PNU | -- |
| 15.20 | -- | 4.500 | 114.30 | 0.337 | 8.56 | 22.62 | -- | -- | P | -- | P | P | -- | |
| 17.00 | -- | 4.500 | 114.30 | 0.380 | 9.65 | 25.30 | -- | -- | P | -- | P | P | -- | |
| 18.90 | -- | 4.500 | 114.30 | 0.430 | 10.92 | 28.13 | -- | -- | P | -- | P | P | -- | |
| 21.50 | -- | 4.500 | 114.30 | 0.500 | 12.70 | 32.00 | -- | -- | P | -- | P | P | -- | |
| 23.70 | -- | 4.500 | 114.30 | 0.560 | 14.22 | 35.27 | -- | -- | P | -- | P | P | -- | |
| 26.10 | -- | 4.500 | 114.30 | 0.630 | 16.00 | 38.84 | -- | -- | P | -- | P | P | -- | |
| P-Plain; N-No threading and no coupling; U-Upset with threading and coupling | ||||||||||||||
