| Place of Origin: | China |
| Brand Name: | J55/K55/N80/L80/P110 |
| Certification: | API-5CT, ISO9001 |
| Model Number: | 3-1/2" |
| Minimum Order Quantity: | 20ton |
|---|---|
| Price: | USD |
| Payment Terms: | T/T, L/C |
| Name: | OCTG Tubing Pipe | Material Grade: | J55 K55 N80 L80 P110 |
|---|---|---|---|
| Standard: | API 5CT | Feature: | Anti Corrosion |
| Shape: | Round Square. Rectangular | Technique: | Cold Drawn |
| High Light: | Cold Drawn OCTG Tubing,Upset OCTG Tubing,N80 octg oil country tubular goods |
||

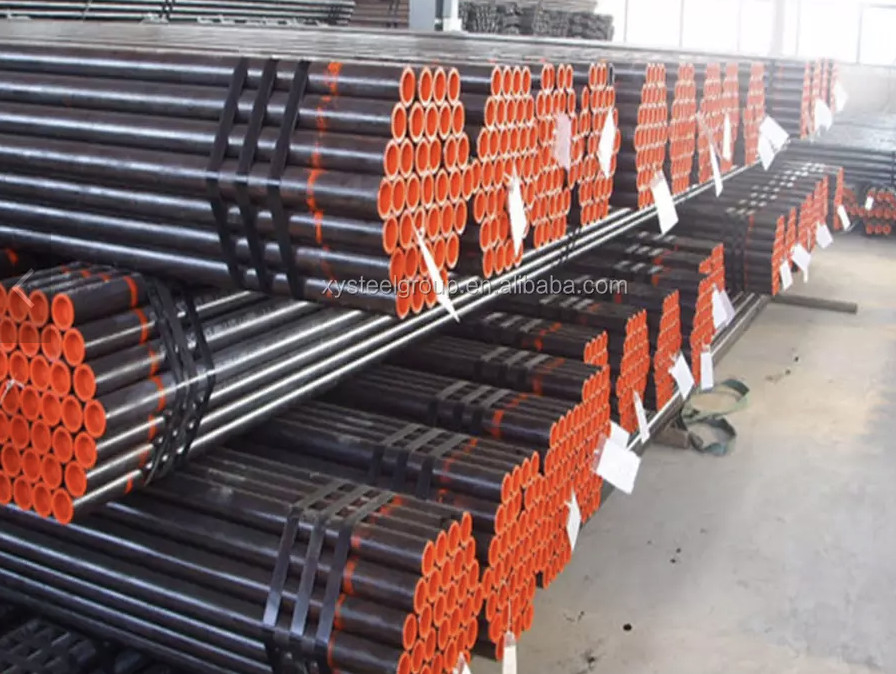

Water Well OCTG Products Non Alloy N80 3-1/2" API 5CT Anti Corrosion
1. High quality products-seamless OCTG 133/8 inch P110 API 5CT casing and tubing
2. Fast delivery.
3. OEM services.
4. Perfect after-sale services
Application
Tubing is pipe used for the transportation of crude oil and natural gas from an oil or gas layer to the surface after drilling is complete. It is made to withstand the pressure generated from the extraction process.
| O.D. | Nominal mass | O.D. | w.t. | Nominal weight | Type of pipe end | |||||||||
| (lb/ft) | (kg/m) | |||||||||||||
| Threaded and coupled | Threaded and coupled | Grade | ||||||||||||
| NUE | EUE | In. | mm | In. | mm | NUE | EUE | J-55 | L-80 | N-80 | C-90 | T-95 | P-110 | |
| 3 1/2" | 7.70 | -- | 3.500 | 88.90 | 0.216 | 5.49 | 11.46 | -- | PN | PN | PN | PN | PN | PNU |
| 9.20 | 9.30 | 3.500 | 88.90 | 0.254 | 6.45 | 13.69 | 13.84 | PNU | PNU | PNU | PNU | PNU | -- | |
| 10.20 | -- | 3.500 | 88.90 | 0.289 | 7.34 | 15.18 | -- | PN | PN | PN | PN | PN | PNU | |
| 12.70 | 12.95 | 3.500 | 88.90 | 0.375 | 9.52 | 18.90 | 19.27 | -- | PNU | PNU | PNU | PNU | -- | |
| 14.30 | -- | 3.500 | 88.90 | 0.430 | 10.92 | 21.28 | -- | -- | P | -- | P | P | -- | |
| 15.50 | -- | 3.500 | 88.90 | 0.476 | 12.09 | 23.07 | -- | -- | P | -- | P | P | -- | |
| 17.00 | -- | 3.500 | 88.90 | 0.530 | 13.46 | 25.30 | -- | -- | P | -- | P | P | -- | |
| P-Plain; N-No threading and no coupling; U-Upset with threading and coupling | ||||||||||||||
