| Place of Origin: | China |
| Brand Name: | J55/K55/N80/L80/P110 |
| Certification: | API-5CT, ISO9001 |
| Model Number: | 2-3/8" |
| Minimum Order Quantity: | 20ton |
|---|---|
| Price: | USD |
| Payment Terms: | T/T, L/C |
| Name: | OCTG Casing Pipe | Material Grade: | J55 K55 N80 L80 P110 |
|---|---|---|---|
| Standard: | API 5CT | Surface: | Anti Corrosive Paint |
| Type: | N80 EU | Length: | 1-12meter Or As Required |
| High Light: | Petroleum Extraction octg casing pipe,N80 EU octg casing pipe,Anti Corrosive Paint octg tubing |
||

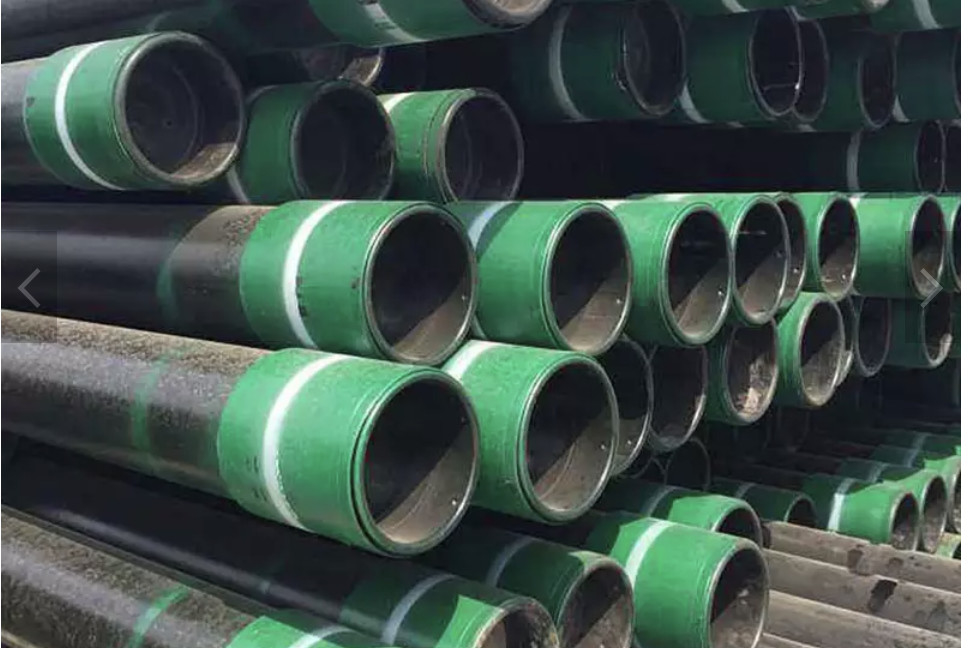

Petroleum Extraction API 5CT TUBING 2-3/8" N80 EU Submersible With Anti Corrosive Paint
Introduction
A casing pipe is a hollow steel tube that is typically rammed into place through the earth by using a hydraulic or pneumatic jack. After being driven, the displaced soil is removed and the product pipe, or carrier pipe, is inserted inside the steel tube.
Usage
1.Structural retainer for the walls of oil, gas wells.
2. Petrol, coal bed gas exploitation engineering.
Length
R1, R2, R3; 2-12m Random,5.8M FIXED,6M FIXED,9M FIXED,11.8M or as required
Surface
Anti- corrosion Water Based Paint
| O.D. | Nominal mass | O.D. | w.t. | Nominal weight | Type of pipe end | |||||||||
| (lb/ft) | (kg/m) | |||||||||||||
| Threaded and coupled | Threaded and coupled | Grade | ||||||||||||
| NUE | EUE | In. | mm | In. | mm | NUE | EUE | J-55 | L-80 | N-80 | C-90 | T-95 | P-110 | |
| 2 3/8" | 4.00 | -- | 2.375 | 60.32 | 0.169 | 4.24 | 5.95 | -- | PN | PN | PN | PN | PN | PNU |
| 4.60 | 4.70 | 2.375 | 60.32 | 0.190 | 4.83 | 6.85 | 6.99 | PNU | PNU | PNU | PNU | PNU | PNU | |
| 5.80 | 5.95 | 2.375 | 60.32 | 0.254 | 6.45 | 8.63 | 8.85 | -- | PNU | PNU | PNU | PNU | -- | |
| 6.60 | -- | 2.375 | 60.32 | 0.295 | 7.49 | 9.82 | -- | -- | P | -- | P | P | -- | |
| 7.35 | 7.45 | 2.375 | 60.32 | 0.336 | 8.53 | 10.94 | 11.09 | -- | PU | -- | PU | PU | PNU | |
| P-Plain; N-No threading and no coupling; U-Upset with threading and coupling | ||||||||||||||
