Place of Origin: | China |
Brand Name: | J55/K55/N80/L80/P110 |
Certification: | API-5CT, ISO9001 |
Model Number: | 2-3/8" |
Minimum Order Quantity: | 20ton |
---|---|
Price: | USD |
Payment Terms: | T/T, L/C |
Name: | OCTG Tubing Casing | Material Grade: | J55 K55 N80 L80 P110 |
---|---|---|---|
Standard: | API 5CT | Thickness: | 0.5 - 50 Mm |
Technique: | Hot Rolled/Cold Drawn | OD Size: | 2-3/8" |
High Light: | API 5CT OCTG Tubing,Hot Rolled OCTG Tubing,2-3/8" octg pipe |

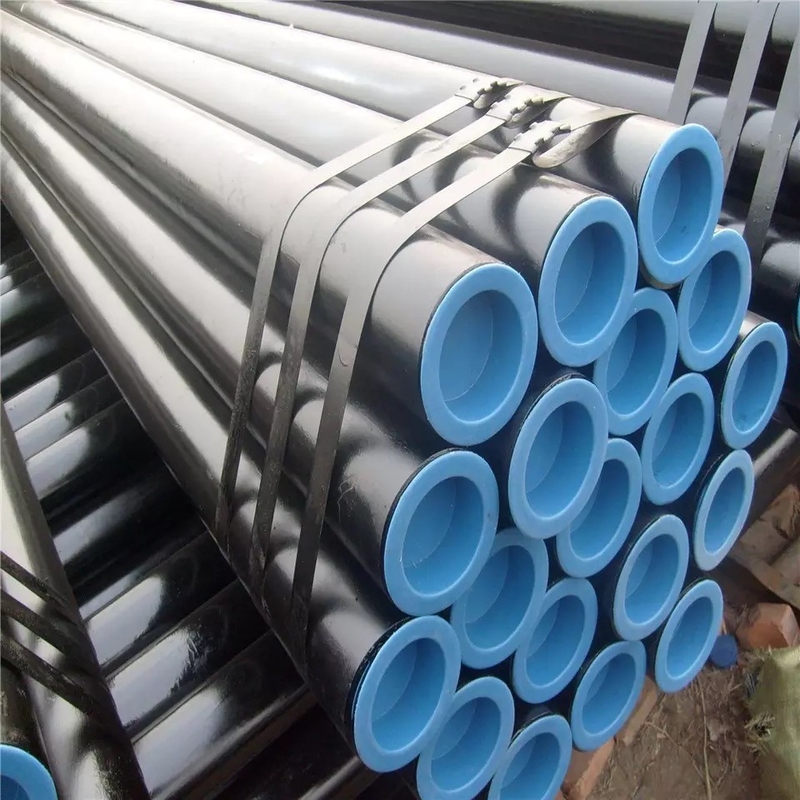

Oil And Gas Well Casing Tube API 5CT OCTG Casing Tubing And Drill Pipe Oil Pipe
Usage
Casing is a series of steel pipes that are run into a drilled oil well to stabilize the well, keep contaminants and water out of the oil stream, and prevent oil from leaching into the groundwater. Casing is installed in layers, in sections of decreasing diameter that are joined together to form casing strings.
Ends
Plain,short round thread,long round thread,buttress thread;
Square cut/ Beveled/ STC/ LC/ BC, Special thread
Available
1. Seamless steel pipe
2. ERW steel pipe
3. LSAW steel pipe
4. SSAW steel pipe
5. Oil country tubular goods
6. Pipe fittings such as flange,tee,elbow etc can be also provide
O.D. | Nominal mass | O.D. | w.t. | Nominal weight | Type of pipe end | |||||||||
(lb/ft) | (kg/m) | |||||||||||||
Threaded and coupled | Threaded and coupled | Grade | ||||||||||||
NUE | EUE | In. | mm | In. | mm | NUE | EUE | J-55 | L-80 | N-80 | C-90 | T-95 | P-110 | |
2 3/8" | 4.00 | -- | 2.375 | 60.32 | 0.169 | 4.24 | 5.95 | -- | PN | PN | PN | PN | PN | PNU |
4.60 | 4.70 | 2.375 | 60.32 | 0.190 | 4.83 | 6.85 | 6.99 | PNU | PNU | PNU | PNU | PNU | PNU | |
5.80 | 5.95 | 2.375 | 60.32 | 0.254 | 6.45 | 8.63 | 8.85 | -- | PNU | PNU | PNU | PNU | -- | |
6.60 | -- | 2.375 | 60.32 | 0.295 | 7.49 | 9.82 | -- | -- | P | -- | P | P | -- | |
7.35 | 7.45 | 2.375 | 60.32 | 0.336 | 8.53 | 10.94 | 11.09 | -- | PU | -- | PU | PU | PNU | |
P-Plain; N-No threading and no coupling; U-Upset with threading and coupling |
